Virtual IED Properties

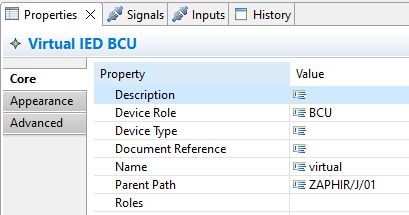

Virtual IED properties

  • Description
    The description field serves as a quick documentation. The generated pdf documentation will contains the description field.

  • Device Role
    Determine the role of this virtual IED in the context of this bay.

  • Device Type

    When the IED is implemented with a real IED the type of the IED is shown on this property

  • Document Reference
    This field shows the path to the Word document that is attached as reference to this function and use on the pdf documentation generation.

  • Name
    Virtual if the IED isn’t implemented otherwise the implemented IED name.

  • Parent Path
    The Id of the hierarchical parent - typically the root element of the function diagram. In the case of equipment functions the Id of the equipment.

  • Roles
    This field shows configuration related to application templating. It is mostly informative, although it is editable to cover edge cases. During normal engineering, this field is not supposed to be modified manually by the user.
