Documentation

Having a IEC61850 project documentation always up-to-date is an continuous challenge. IEC61850 define SCL file that can be seen as a machine readable documentation. HELINKS STS produces an human readable and up-to-date PDF document from you project.

This documentation is based on :

• Specification

  • Single line

  • Application

• SCL content

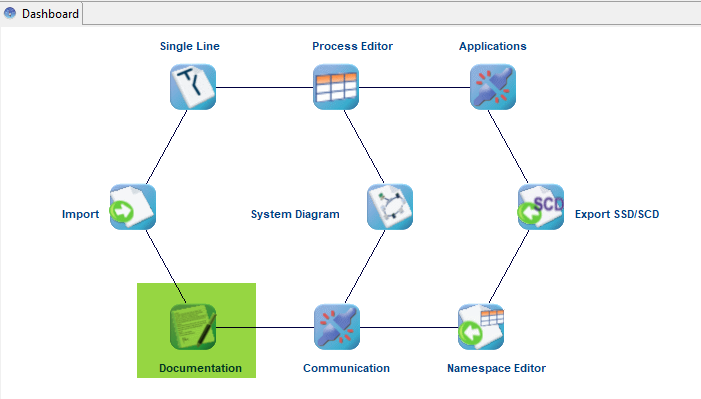

The automatic generation of the documentation is available on Dashboard with the “Documentation” button.

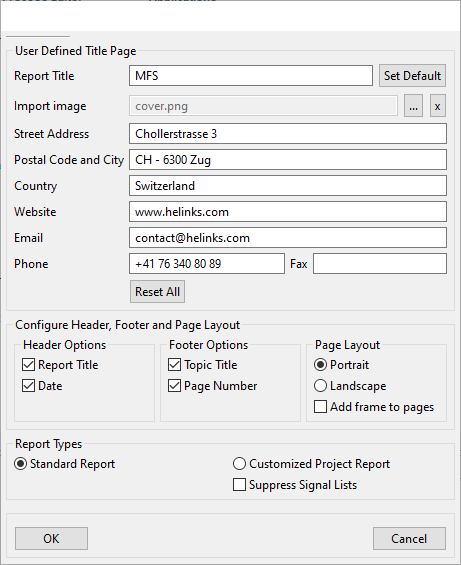

The following dialog allow you to customize the generated report.

Page Layout Landscape give a better result for the SLD

The documentation is opened automatically after generation.

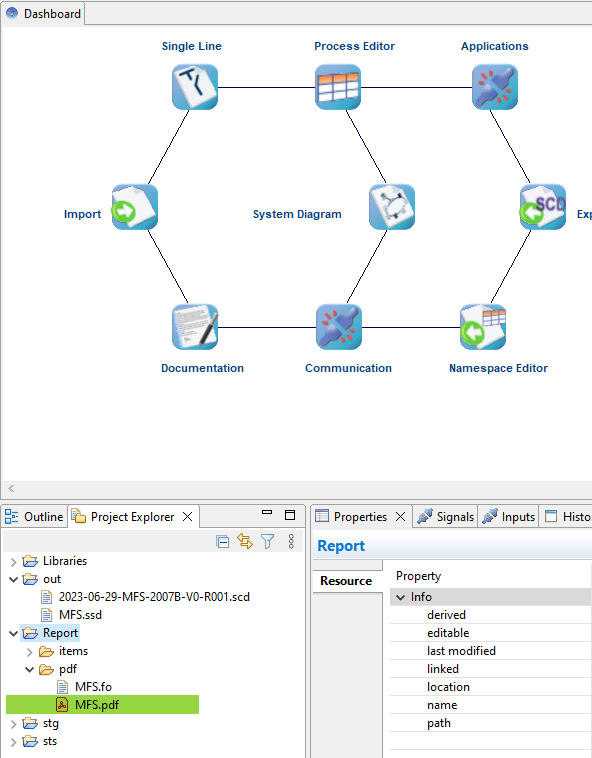

The documentation is store on the project folder Report/pdf

The documentation can be customized with by attaching utility word document references.
