Having an IEC61850 project documentation always up-to-date is a continuous challenge. IEC61850 defines SCL file that can be seen as a machine readable documentation. HELINKS STS produces a human readable and up-to-date PDF document from your project.
This documentation is based on :
-
Specification
-
Single line
-
Application
-
-
SCL content

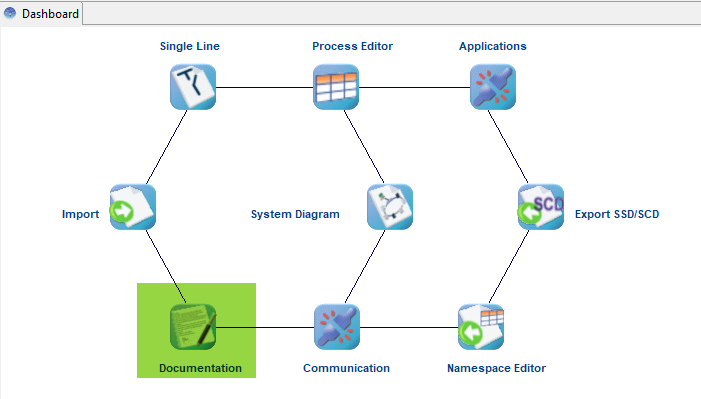

The automatic generation of the documentation is available on Dashboard with the “Documentation” button.

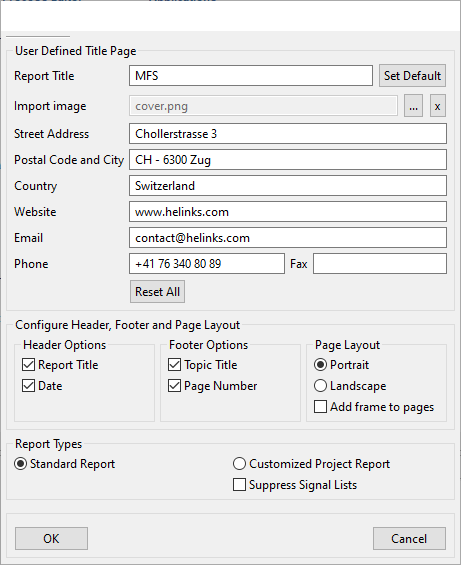

The following dialog allows you to customize the generated report.
Page Layout Landscape gives a better result for the SLD
The documentation is opened automatically after generation.

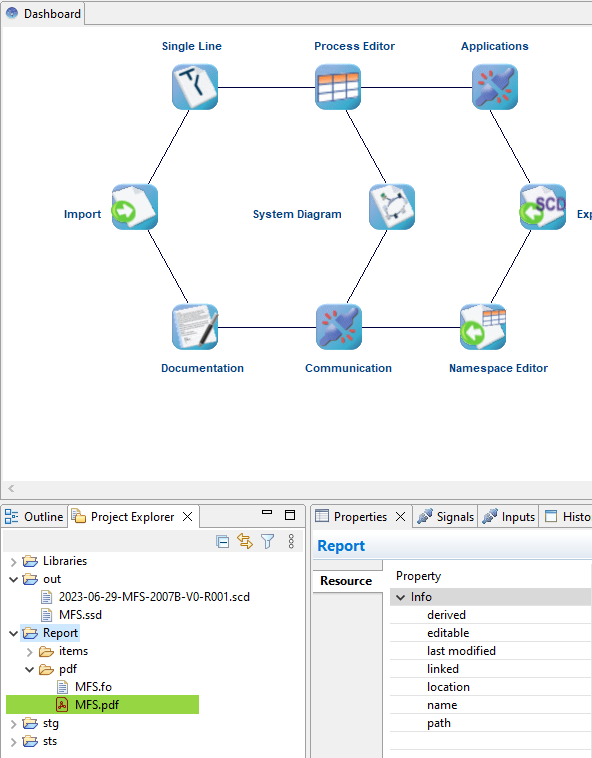

The documentation is stored on the project folder Report/pdf
The documentation can be customized by attaching utility word document references.
