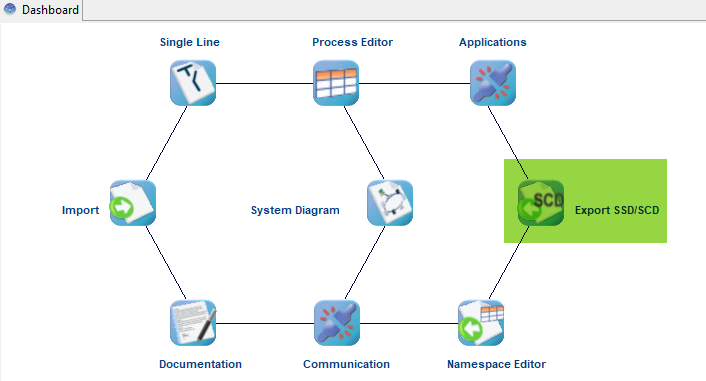

This feature is available in the dashboard with the button "Export SSD/SCD "

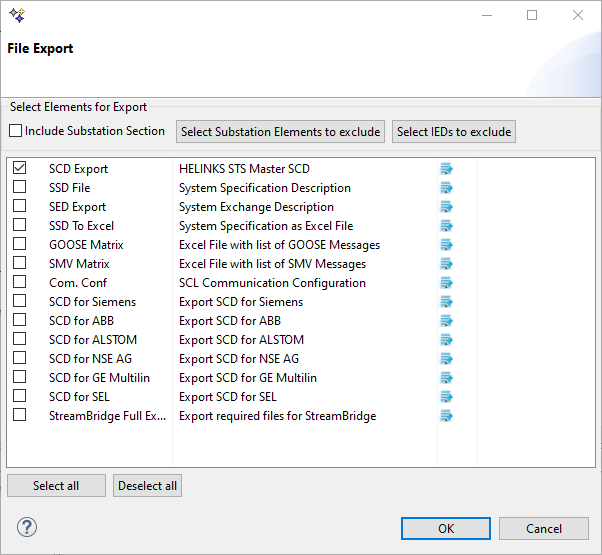

In the export dialog check SCD Export

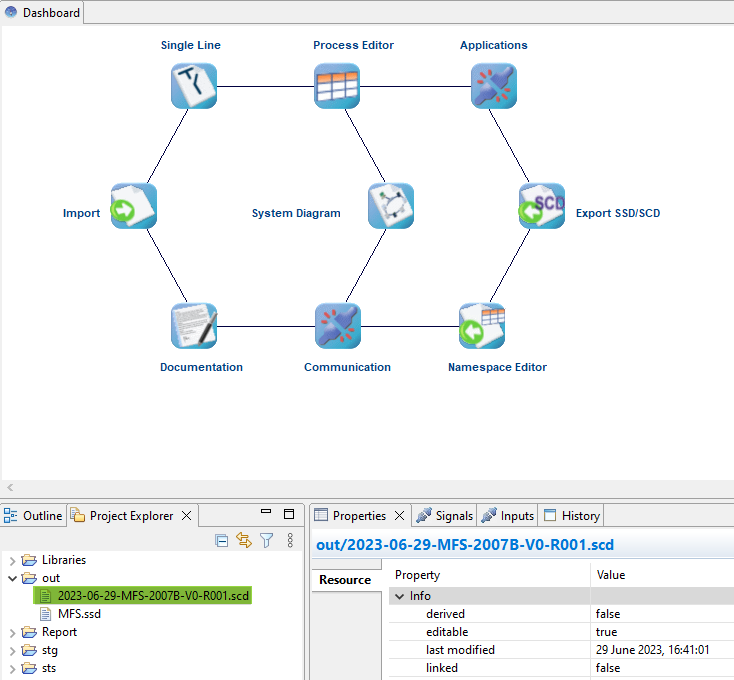

The result is stored in the out folder of the project.
Support for IEC 61850-6-100 namespaces
When using the feature flag --features IEC61850_6_100 as a command line parameter or in the ini file, exports will contain elements from this namespace, defined in IEC 61850-7-6 and IEC 61850-90-30.
ASD Export
Application templates can now be exported as ASD (Application Specification Description) files. ASD is an IEC 61850-6-100 interoperability format that allows application definitions to be shared between compatible tools.
To export, right-click an application template from the list of applications and choose Export as ASD from the context menu. The file will be placed in the /out/ASD folder of the project.
SSD Export with IEC 61850-6-100 Applications
SSD export can now be enriched with IEC 61850-6-100 application data. When exporting an SSD file, enable the option to include application definitions. This adds standardized application descriptions to the system specification, making the SSD file more complete for downstream tools.
