Draw Power Equipment

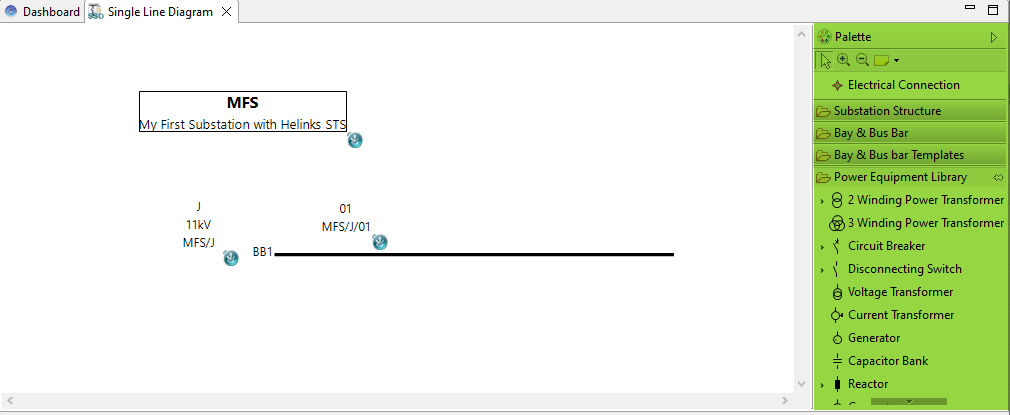

On the right part of the screen you have the drawing palette.

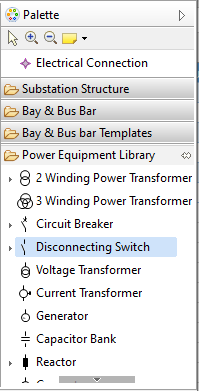

The drawing palette contains a group for “power Equipment Library”.

Make sure that the correct Substation/VoltageLevel/Bay element is active before adding a Power equipment element.

  1. Select the type of element to add “Disconnecting Switch” in the palette by clicking on it.

  2. When placing the object, just click where you want to put it. Do not drag and resize the object during placement.

  3. Give a name to the new added “Disconnecting Switch” Q1.

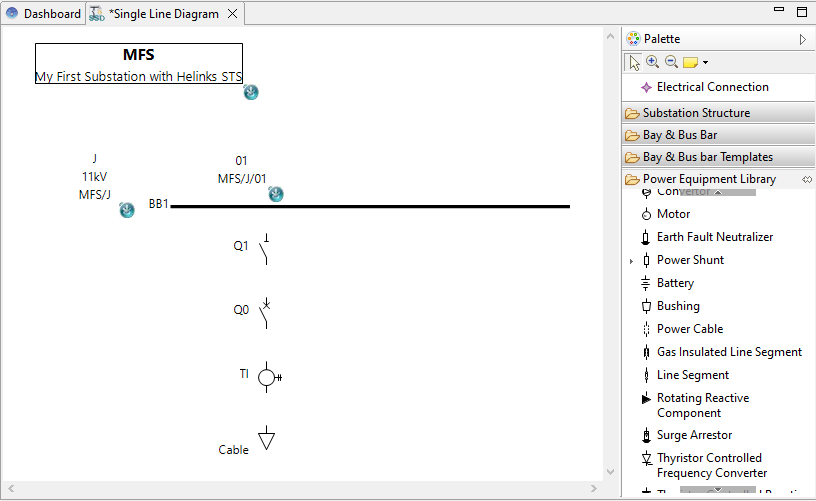

  4. Repeat the operation for a "Circuit Breaker " Q0, a "Current Transformer" TI and a "Feeder" Cable. The "Feeder" is the last element in the Drawing Palette.

Parent topic: System Specification

Previous topic: How To Select Objects

Next topic: Use Guide To Align Objects
