Connect Power Equipment

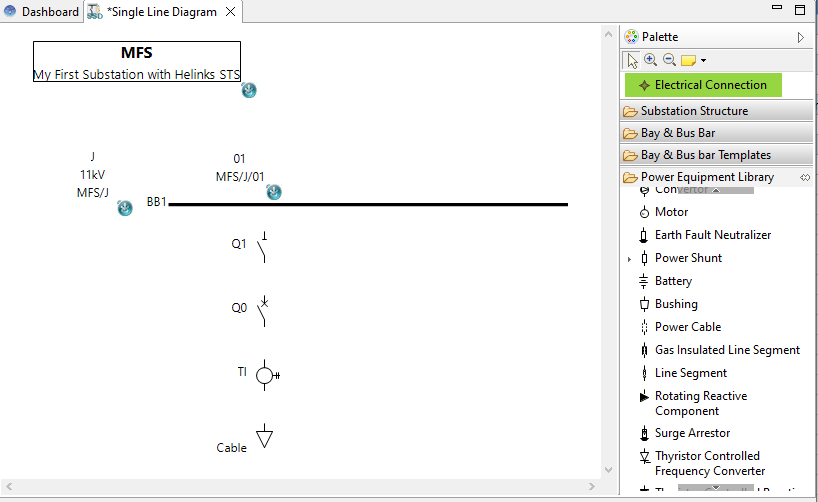

Use the “Electrical Connection” tool from the palette to connect the power equipment with each other and with the Bus Bar.

When the electrical connection isn’t available the following cursor icon is shown :

The cursor icon change when you are near an available connection point.

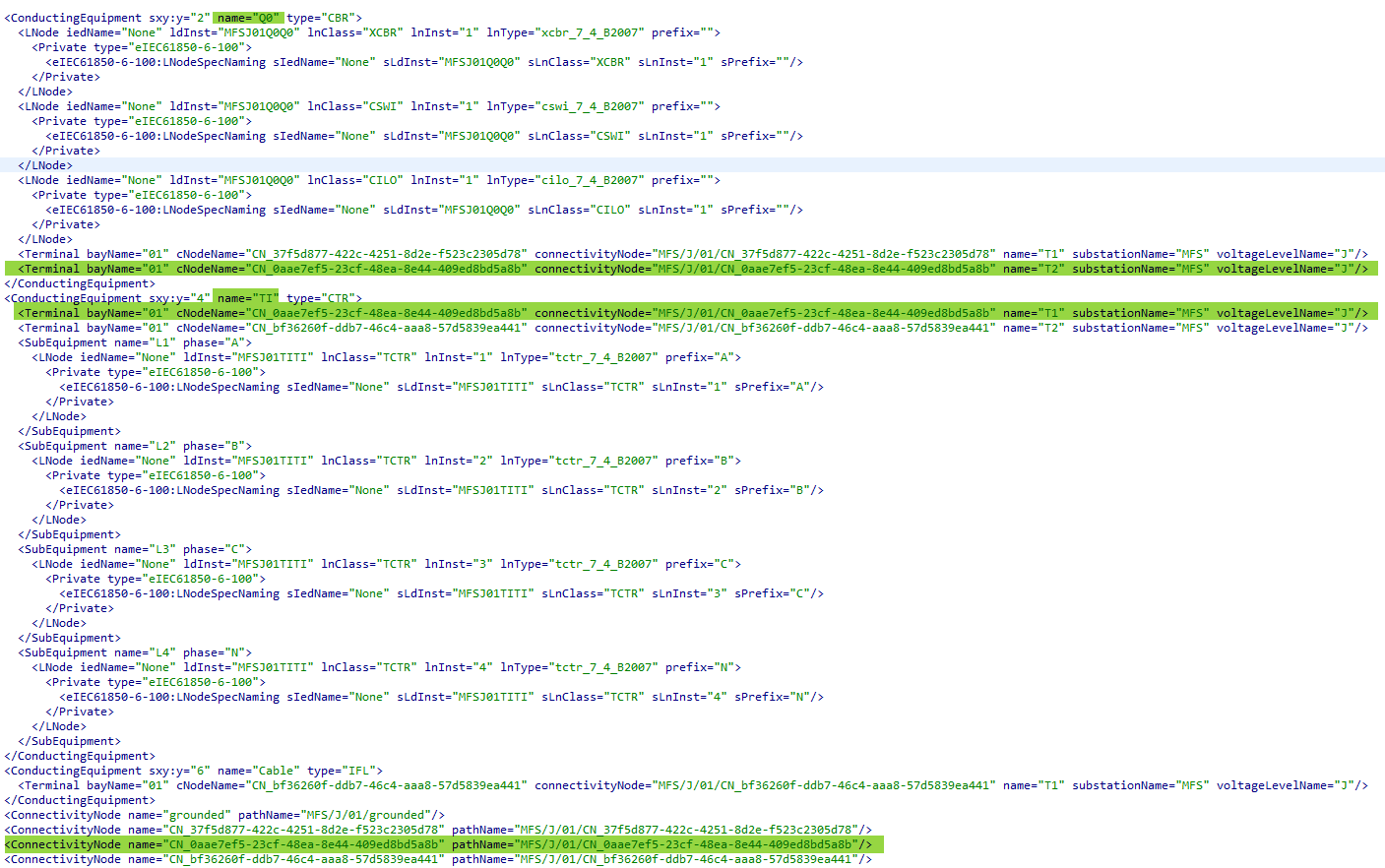

SCL Connectivity Nodes will be created automatically in the background by the system.

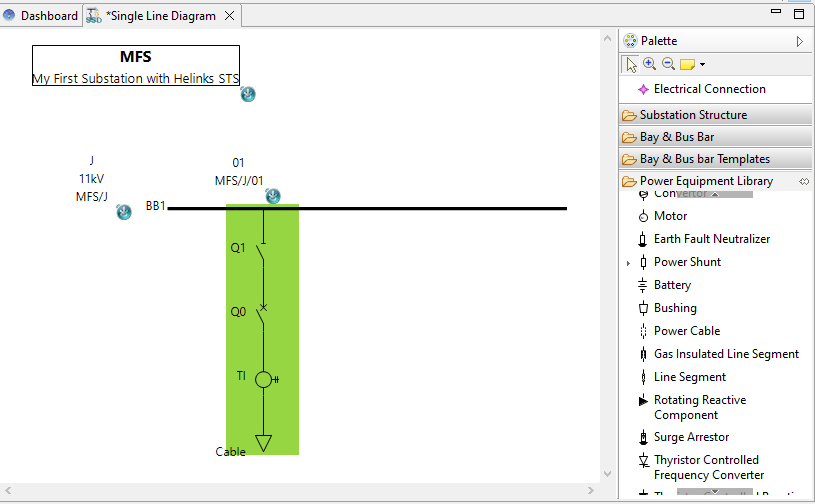

When connecting more than two elements with each other first draw a connection line between two elements and then connect the next element with the already existing connection line.

Hold down the CTRL key to create several electrical connection without having to select each time the Electrical Connection tool.
