Create Functions

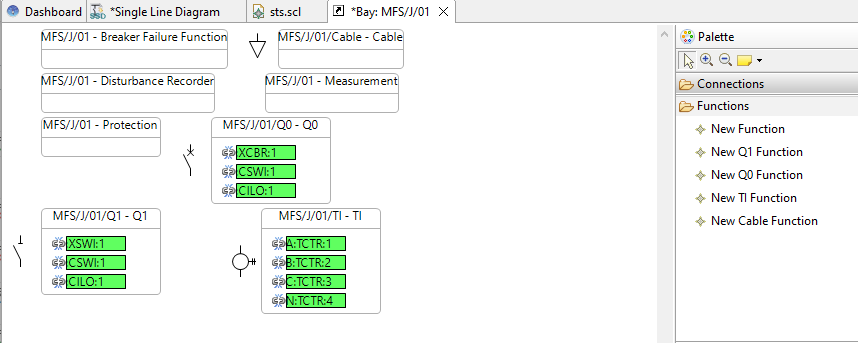

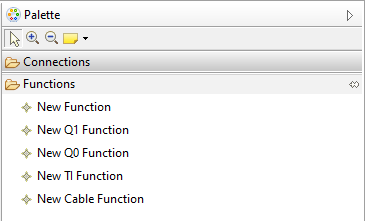

From the palette select "new Function" to create a generic function or “New {Equipment name} Function” to create a function related to a conducting equipment.

You can create the following generic function "Protection", "Measurement", "Disturbance Recorder" and "Breaker Failure Function".

Parent topic: System Specification

Previous topic: Connect Power Equipment

Next topic: Logical Nodes in the Function Diagram Palette
