Communication Editor

The Communication editor is a user friendly representation of the Helinks STS internal SCL data model.

The Communication editor is available from the dash board button “Communication Editor”.

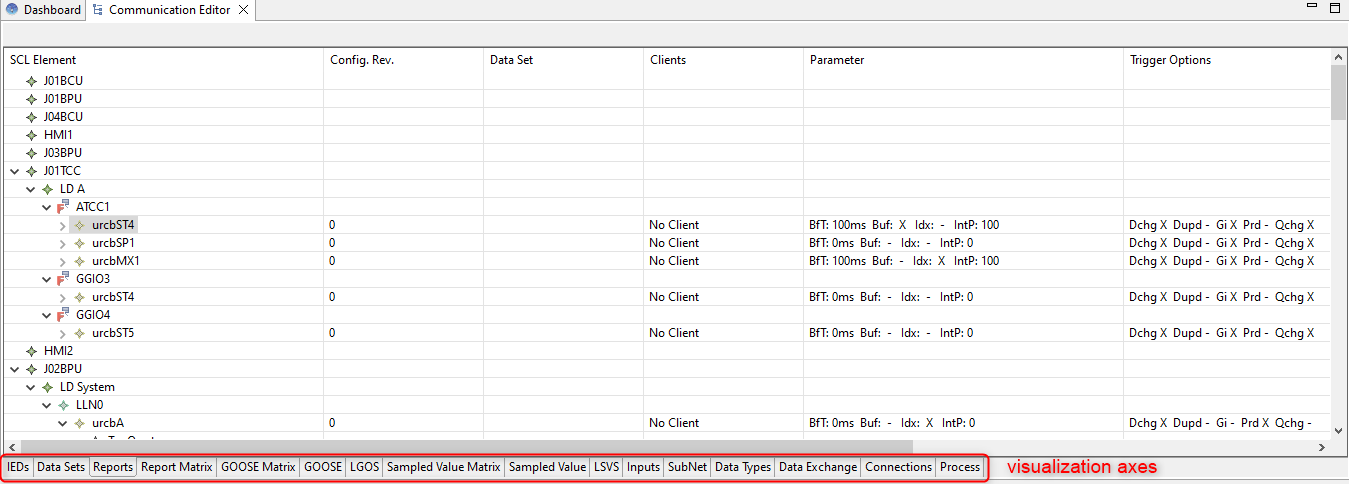

Communication Editor

It represent always the complete data model of the current project but over multiple visualization axes :

  • IED Show for each IED of the project a tree view of the SCL IED elements

  • Data Sets Show for each IED of the project a tree view of the SCL Dataset elements

  • Report Show for each IED of the project a tree view of the SCL Report Control Block elements

  • Report Matrix Show a Matrix representation of the report exchanges

  • GOOSE Matrix Show a Matrix representation of the Goose exchanges

  • GOOSE Show for each IED of the project a tree view of the SCL Goose Control Block elements

  • LGOS Show for each IED of the project a tree view of the SCL LGOS elements

  • Sampled Value Matrix Show a Matrix representation of the Sampled Value exchanges

  • Sampled Value Show for each IED of the project a tree view of the SCL SV Control Block elements

  • LSVS Show for each IED of the project a tree view of the SCL LSVS elements

  • Inputs Show for each IED of the project a tree view of the SCL Inputs/ExtRef elements

  • Subnet Show for each subnet of the SCL Communication section a tree view of the SCL SubNet elements

  • DataTypes Show the datatype template section of the SCL

  • DataExchange Show a tree view representation of the project application exchange.

  • Connections Show a substation section representation of each signal used in communication exchange

  • Process Show the process section of the SCL

When an element is selected on the detail view of the communication Editor the related property can be visualized in the properties view.

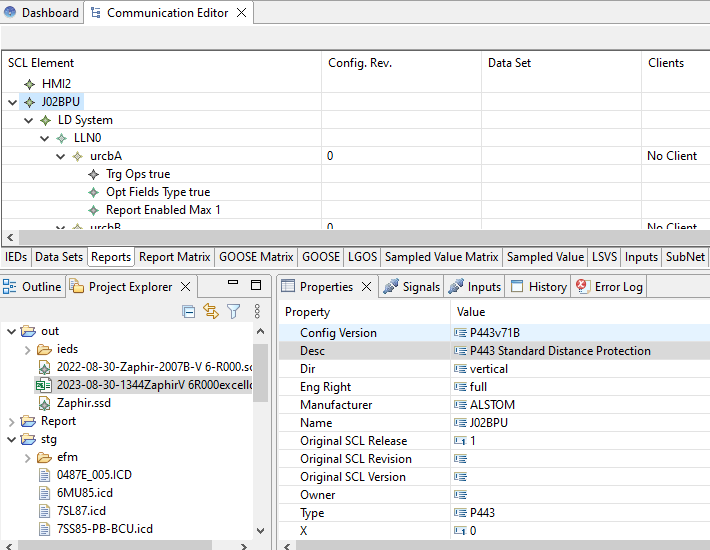

Properties view of a communication editor element

Please note that the information contained in the Communication Editor is established by the choices made in the other editors (SLD Designer, 61850 Configurator, communication generation, …).

Please note that the information contained in the Communication Editor is established by the choices made in the other editors (SLD Designer, 61850 Configurator, communication generation, …). Any modification directly impacts the SCL structure of your project and may be lost with an new communication configuration.

The Communication Editor allow to Edit the SCL structure of your project. Be careful, some modifications may make your project invalid (e.g. deleting a Logical Node type).
