Compile IEC61850 communication

As Define before Helinks STS base the communication generation over 2 main principles :

  • the specification

  • the IED specificity

The communication configuration will impact these points :

  • Control Block creation or usage

  • Dataset creation or usage

  • GSE, SVM creation or usage

  • ExtRef creation or usage

  • LGOS / LSVS creation of usage

You can use the Communication Editor to check the generated communication.

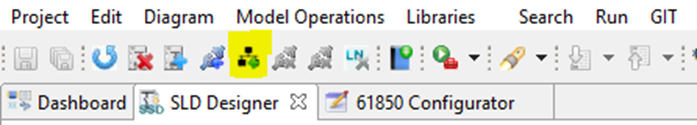

The compilation of the IEC61850 communication is done by the tools bar button “Set SCL communication from specification”.

“Set SCL communication from specification” button

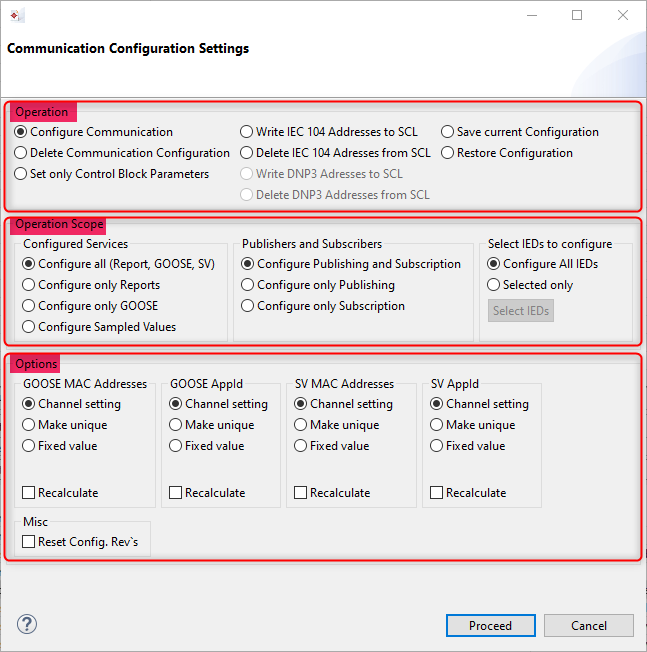

This will open the Communication Configuration Setting dialog where you can customize the communication generation.

Communication configuration dialog

This Dialog contains 3 main customization sections (Operation, Scope, Options).

Operation

the operation determine the action that will be performed

  • Configure Communication will create the communication (ControlBlock, dataset, extref,…)

  • Delete Communication Configuration will delete the existing communication configuration (ControlBlock, dataset, extref,…)

  • Set only Control Block Parameter will not change the current communication configuration by creating or using element (ControlBlock, dataset, extref,…) but will only adapt the control block parameters.

  • Configure Communication will create the communication (ControlBlock, dataset, extref,…)

  • 104 action will write/remove 104 addresses in SCL

  • DNP action will write/remove DNP addresses in SCL

  • Save current configuration will backup the current project to the Archive folder

  • Restore configuration will restore an old version of the project from the Archive folder

Scope

The scope define one which element the operation is applied. The scope is subdivided in 3 area (Services, Publisher Subscriber, IED selection).

  • Services determine which service will be impacted by the operation

  • Publisher / subscriber determine which side (publisher / subscriber) of the service will be impacted by the operation

  • IED selection determine on which IEDs the operation will by applied

Options

The options allow to customize specific parts (GOOSE/SV mac addresses, appid) of the communication generation with global algorithm.

  • Channel setting use the information store on the service specification channel of the application to determine the generated value.

  • Make unique ensure an unique value during the generation process

  • Fixed Value force the generated value to an specific value

Channel setting is the preferred option.

By default the communication configuration algorithm restore APPID and MACAddresses if a previous generation was done. The recalculate check box allow to bypass this process and force the recalculation.
