AutomappingLNodes

Double click on the implemented IED in the Function Specification.

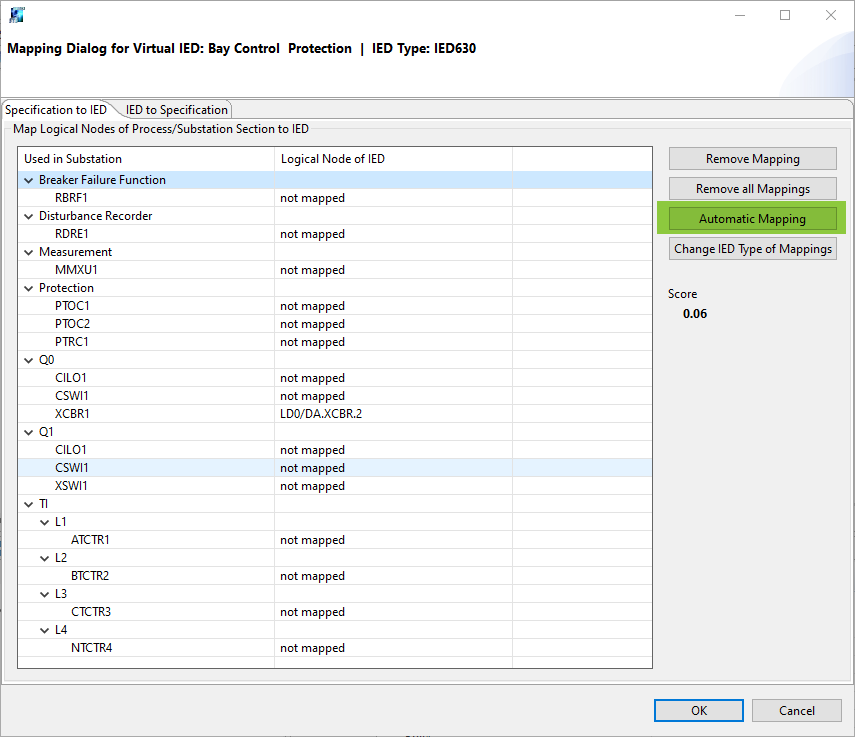

Click "Automatic Mapping"


Observe that the mapping is done based on the LN Class, LN prefix and LN instance. the system map the signal to the most appropriate LN.

Automapping did not work if the LN Class isn't the same..


Parent topic: Map Logical Nodes To IEDs

Previous topic: Implement virtual IEDs

Next topic: Manual Mapping of Logical Nodes
