Configuring Applications (Report)

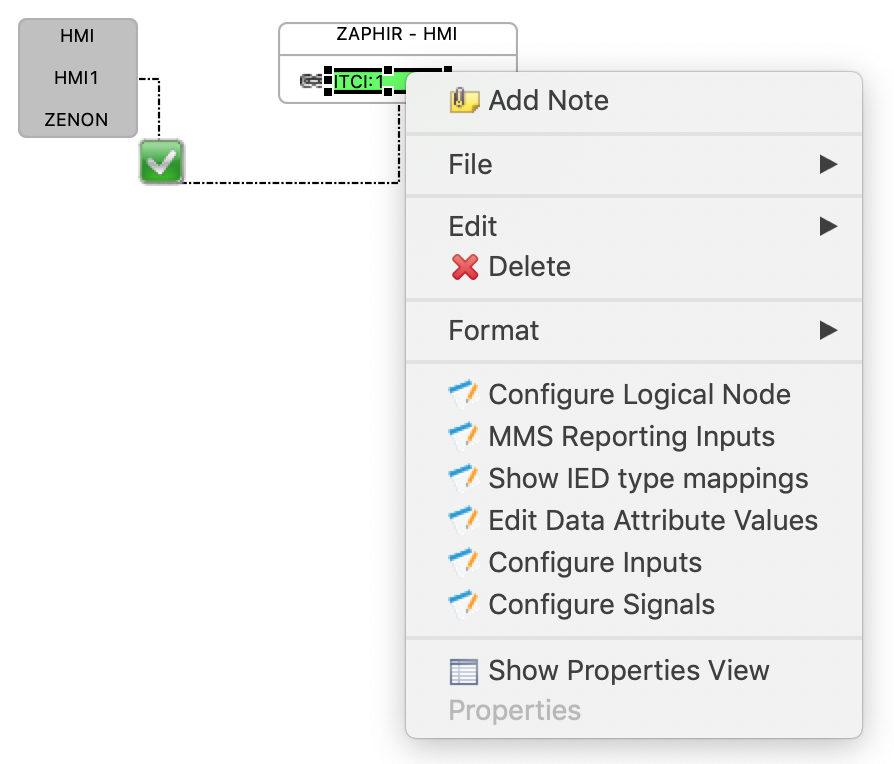

Report applications can be configured in the same way as GOOSE and SMV, but the simpler configuration demands allow a shortcut that greatly speeds up Report configuration, and is the recommended way of doing. Navigate to the subscribing logical node, and select the ‘MMS Reporting Inputs’ entry in the right-click context menu.

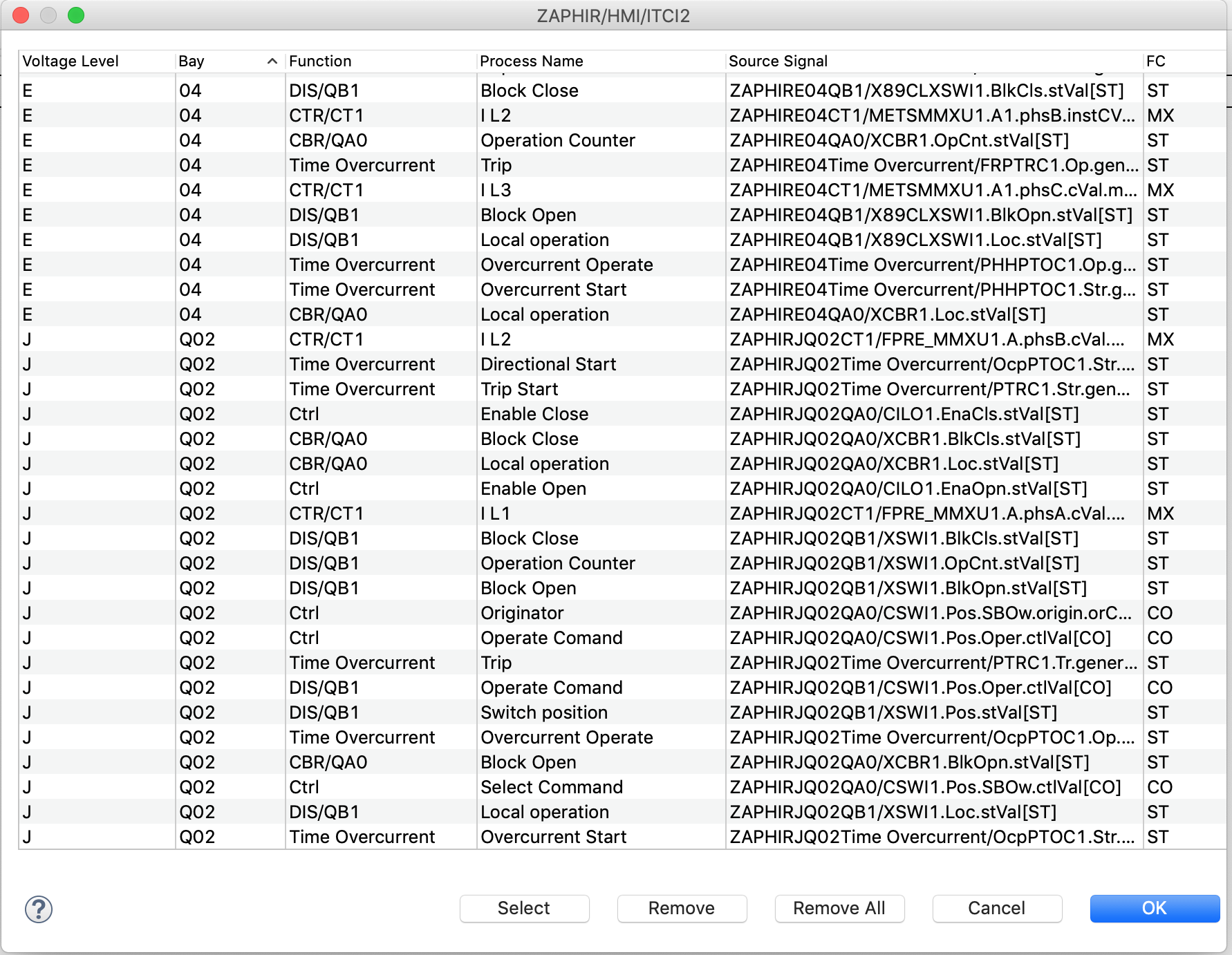

This dialog shows you a list of all signals this logical node is subscribed to:

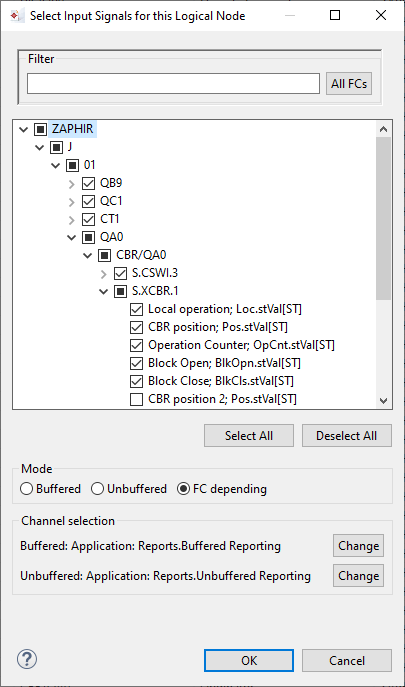

Clicking on the ‘Select’ button brings up a dialog to choose additional signals to subscribe to. The dialog contains a tree representation of the entire project and can be drilled down to the individual signal level to select subscription.

Selected Signals will be added to the default Report application - either to the Buffered or the Unbuffered configuration, depending on the settings in the selection dialog. The ‘FC depending’ will add Status values (functional constraint [ST]) to the Buffered configuration, and all other Signals to the Unbuffered configuration.

The Subscriptions are performed when the MMS Report Inputs dialog is closed using the Ok button. If you want to use different settings for Buffered/Unbuffered/FC depending, you will need to confirm each individual setting by closing the main dialog!

If you have multiple Report application defined in your project you can used the channel selection to create the Report link on a specific application.
