Having a IEC61850 project documentation always up-to-date is an continuous challenge. IEC61850 define SCL file that can be seen as a machine readable documentation. HELINKS STS produces an human readable and up-to-date PDF document from you project.
This documentation is based on :
-
Specification
-
Single line
-
Application
-
-
SCL content

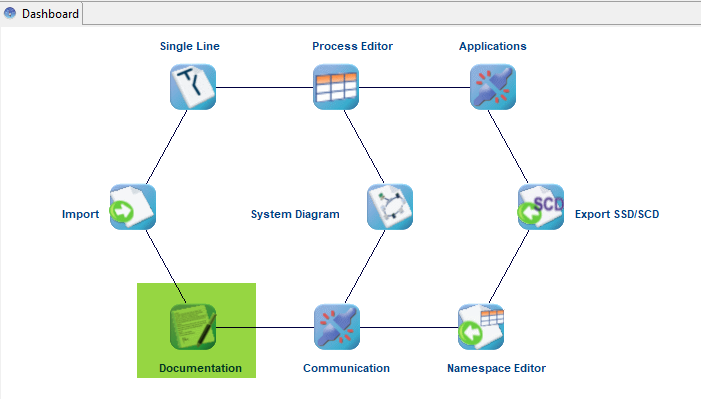

The automatic generation of the documentation is available on Dashboard with the “Documentation” button.

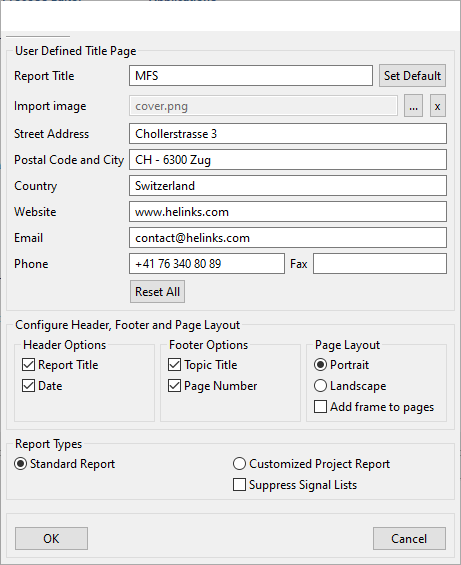

The following dialog allow you to customize the generated report.
Page Layout Landscape give a better result for the SLD
The documentation is opened automatically after generation.

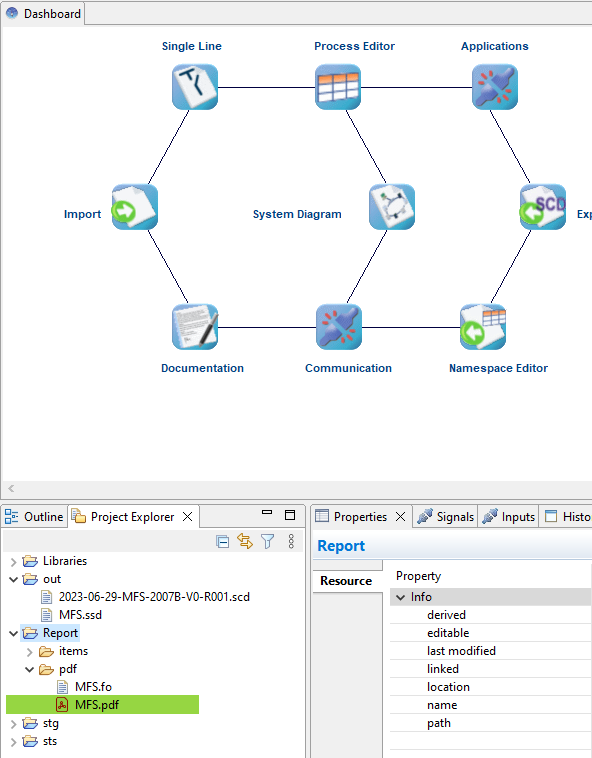

The documentation is store on the project folder Report/pdf
The documentation can be customized with by attaching utility word document references.
